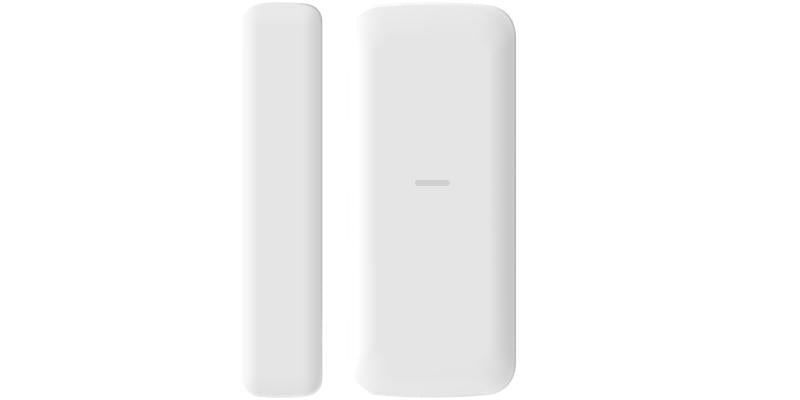

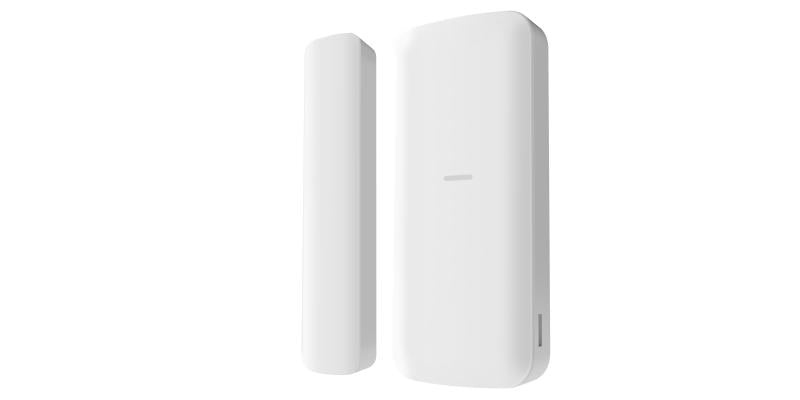

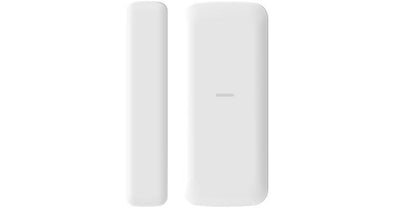

Hikvision Wireless Slim Magnetic Detector DS-PDMCS-EG2-WE AX PRO

Hikvision Wireless Slim Magnetic Detector DS-PDMCS-EG2-WE AX PRO

150 in stock

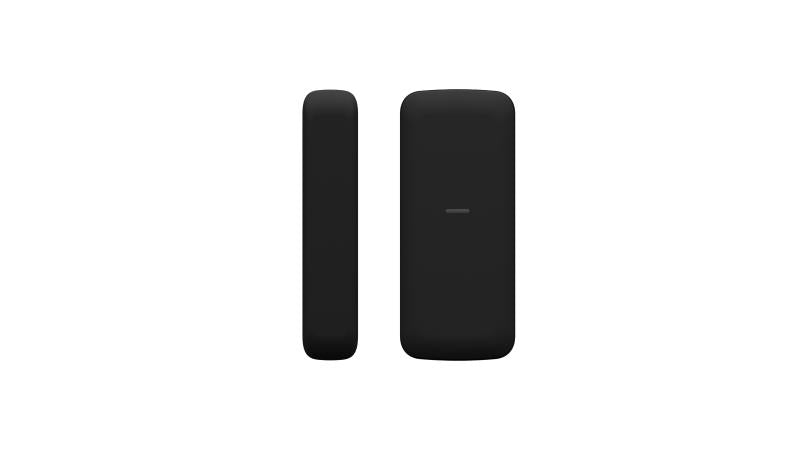

Color: Hikvision Wireless Slim Magnetic Detector DS-PDMCS-EG2-WE AX PRO BLACK
€28,95
€33,95 €28,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision Wireless Slim Magnetic Detector DS-PDMCS-EG2-WE AX PRO

  • Slim design for an unobtrusive installation
  • Fully remote configurable through APP
  • Multiple enrollment methods and easy installation design
  • Frequency hopping against jamming for reliable transmission
Specification Details
Detection Method Opening Contact
Detection Gap 52 mm Max
Features - Digital Processing: Support
- Tamper Protection: Front, Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
Interface - Power Switch: Power up enrolling
- LED Indicator: Blue (alarm)
Transmission - Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 868 MHz
- Transmission Security: AES-128 Encryption
- Transmission Range (Free Space): 1 km
- Frequency Hopping: Support
- Enrolling Method: Power up, Remote ID, QR Code
Electrical Characteristics - Standard Battery Life: Up to 3 years (standby time)
- Power Supply: Battery powered
- Battery Type: CR2450 x 1
- Typical Voltage: 3V
General - Operating Temperature: -10°C to 55°C (14°F to 131°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Operating Humidity: 10% to 90%
- Dimensions (W x H x D): 29 mm × 69 mm × 10 mm (sensor), 14 mm × 69 mm × 10 mm (magnet)
- Weight: 38 g
- Mounting Method: Wall-mount (supports wooden structure installation; not suitable for metal surfaces)
- Application Scenario: Indoor
