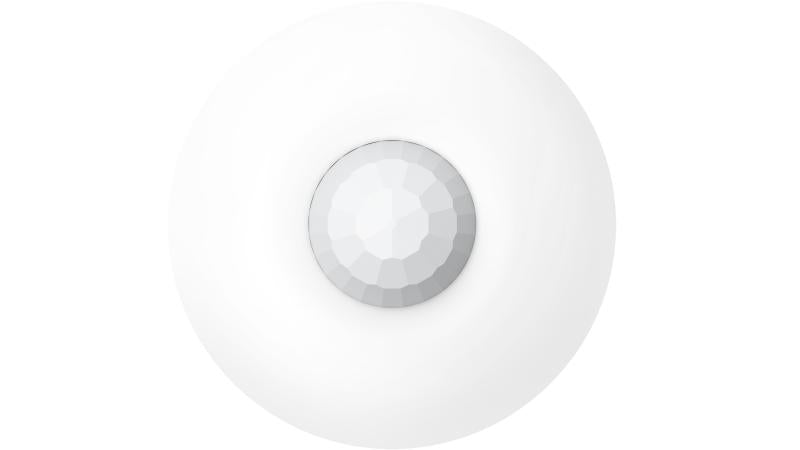

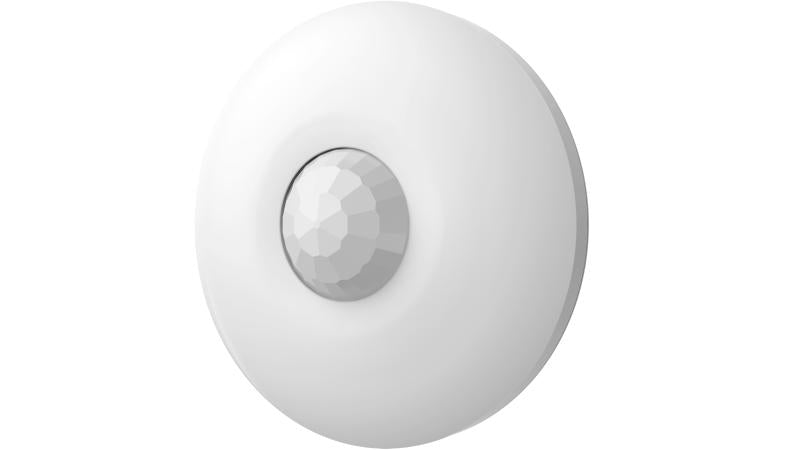

Hikvision Wireless PIR Ceiling Detector AX PRO DS-PDCL12-EG2-WE

Hikvision Wireless PIR Ceiling Detector AX PRO DS-PDCL12-EG2-WE

€31,22
€57,95 €31,22
Sale Sold out
Taxes included. Shipping calculated at checkout.

DSPDCL12EG2WE

Hikvision Wireless PIR Ceiling Detector AX PRO DS-PDCL12-EG2-WE

  • Detection Range: 12m/360°
  • SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
  • Fully remote configurable through APP
  • Multiple enrollment methods and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission
Specification Details
Detection Method Passive Infrared
Detection Range 12m
Detection Angle 360°
Detection Zones 172
Detectable Speed 0.3 to 2m/s
Sensitivity Auto, Low
White Light Filter 6500lux
Digital Temperature Compensation Support
Creep Zone Protection Support
Digital Processing Support
Sealed Optics Support
Tamper Protection Front, Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Power Switch Power up enrolling
LED Indicator Blue (alarm)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868 MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) 1.6 km
Frequency Hopping Support
Enrolling Method Power up, Remote ID, QR Code
Standard Battery Life Up to 5 years (standby time)
Power Supply Battery powered
Battery Type CR123A × 1
Typical Voltage 3V
Operation Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operation Humidity 10% to 90%
Dimension (W x H x D) φ101.2 mm x 32.9 mm
Weight 109.5 g
Mounting Height 2.4 m to 4 m
Mounting Method Ceiling
Application Scenario Indoor
