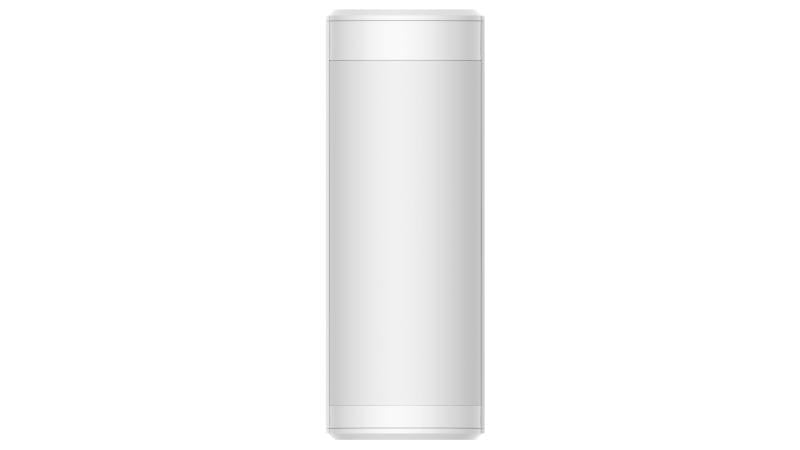

Hikvision wireless outside 2PIR AM detector DS-PDTT15AM-LM-WE AX PRO

Hikvision wireless outside 2PIR AM detector DS-PDTT15AM-LM-WE AX PRO

€146,22
€260,00 €146,22
Sale Sold out
Taxes included. Shipping calculated at checkout.

DSPDTT15AMLMWE

Hikvision wireless outside 2PIR AM detector DS-PDTT15AM-LM-WE AX PRO

  • 90°@180° adjustable coverage
  • IP65 weather resistance for outdoor application
  • Active IR anti-masking
  • Multiple enrollment methods and easy installation
  • Frequency hopping against jamming for reliable transmission
Specification Details
Detection Method Passive Infrared, Microwave
Detection Range 15 m
Detection Angle 90° @180° adjustable
Detection Zones 92
Detectable Speed 0.3～2 m/s
Sensitivity Auto, Low
White Light Filter 10000 lux
Microwave Frequency 24 GHz (24.15～24.25 GHz)
Pet Immunity 40 kg
Digital Temperature Compensation Support
Anti-masking Support
Adaptable Coverage Support, Pattern mask included
Digital Processing Tri-Signal Logic
Sealed Optics Support
Tamper Protection Front, Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Anti-Sway Analytics Support
Power Switch Power up enrolling
LED Indicator Green (Top PIR), Red (Microwave), Orange (Bottom PIR), Green+Orange (Mask), Blue (Alarm)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868 MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) 1.6 km
Frequency Hopping Support
Enrolling Method Power up, Remote ID, QR
