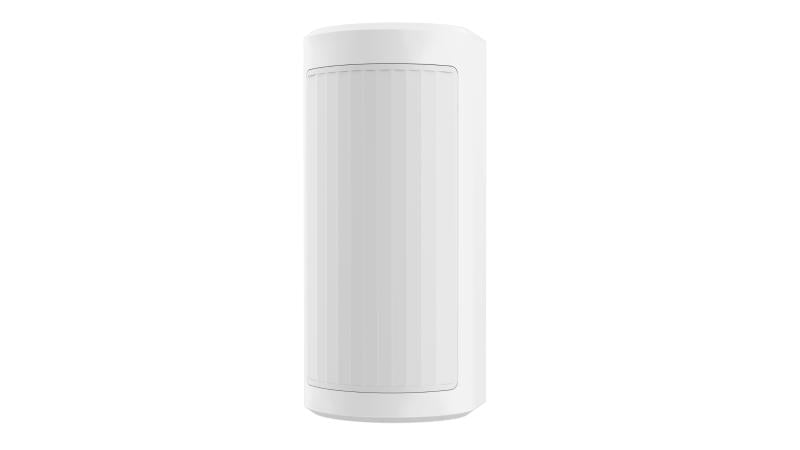

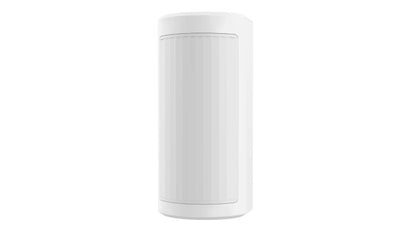

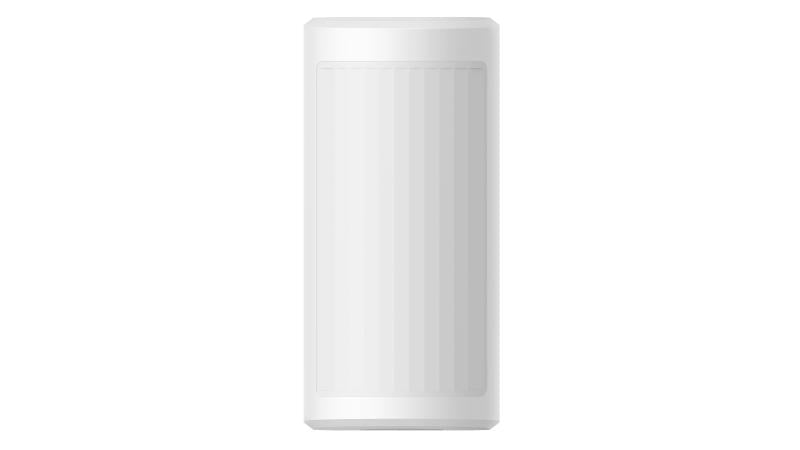

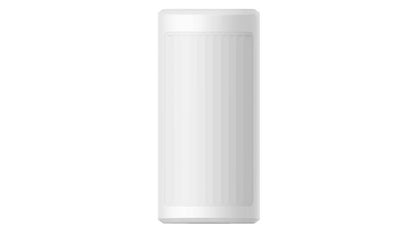

Hikvision wireless outdoor motion sensor DS-PDP18-HM-WE AX PRO

Hikvision wireless outdoor motion sensor DS-PDP18-HM-WE AX PRO

€71,12
€125,00 €71,12
Sale Sold out
Taxes included. Shipping calculated at checkout.

DSPDP18HMWE

Hikvision wireless outdoor motion sensor DS-PDP18-HM-WE AX PRO

  • High/Low mount adjustment
  • IP65 weather resistance for outdoor application
  • Multiple enrollment methods and easy installation
  • Frequency hopping against jamming for reliable transmission
Specification Details
Detection Method Passive Infrared
Detection Range 18 m
Detection Angle 90°
Detection Zones 118
Detectable Speed 0.3～2 m/s
Sensitivity Auto; Pet
White Light Filter 20000 lux
Pet Immunity Up to 24 kg
Digital Temperature Compensation Support
Digital Processing Support
Sealed Optics Support
Tamper Protection Front; Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Power Switch Power up enrolling
LED Indicator Blue (alarm)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868 MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) 1.6 km
Frequency Hopping Support
Enrolling Method Power up; Remote ID; QR Code
Standard Battery Life Up to 5 years (standby time)
Power Supply Battery powered
Battery Type CR123A × 2
Typical Voltage 3V
Operation Temperature -25 °C to 60 °C (-13 °F to 140 °F)
Storage Temperature -25 °C to 60 °C (-13 °F to 140 °F)
Operation Humidity 10% to 90%
IP Rate IP65
Dimension (W x H x D) 67.3 mm × 141.6 mm × 60 mm
Weight 301 g
Mounting Height 2.5 to 3 m high mount; 0.8 to 1.2 m low mount
Mounting Method Wall
Application Scenario Indoor, outdoor
Bracket Adjustment bracket included
