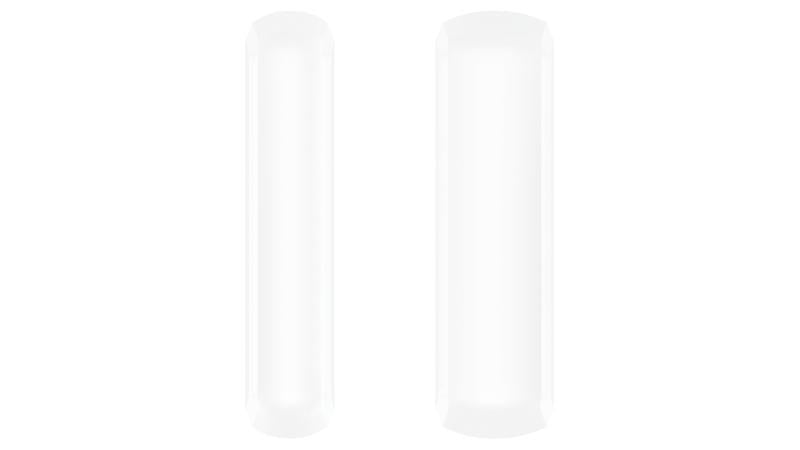

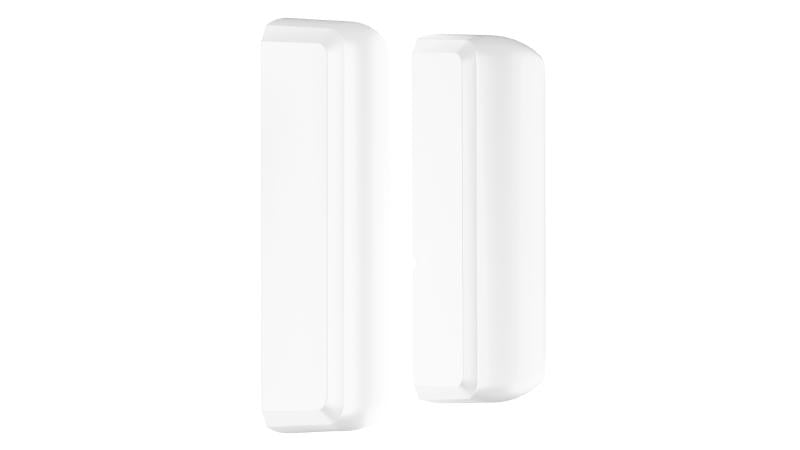

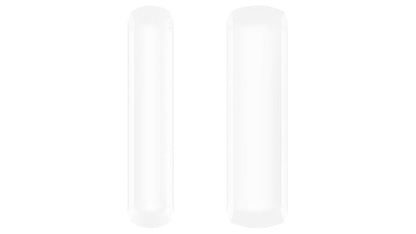

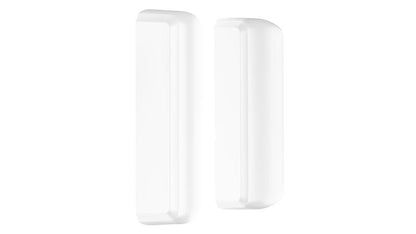

Hikvision Wireless Magnetic Detector DS-PDMCX-E-WE AX PRO

Hikvision Wireless Magnetic Detector DS-PDMCX-E-WE AX PRO

16 in stock

€69,95
€75,00 €69,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision Wireless Magnetic Detector DS-PDMCX-E-WE AX PRO

  • · IP66 protective level, UV stable
  • · Fully remote configurable through APP
  • · Multiple enrollment methods and easy installation design
  • · Frequency hopping against jamming for reliable transmission
Specification Details
Detection Method Opening Contact
Detection Gap 76 mm Max
Features - Digital Processing: Support
- Tamper Protection: Front; Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
Interface - Alarm Input: Normally Closed; Normally Open; Impulse Count
- Power Switch: Power up enrolling
- LED Indicator: Blue (alarm)
Transmission - Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 868 MHz
- Transmission Security: AES-128 Encryption
- Transmission Range (Free Space): 1.6 km
- Frequency Hopping: Support
- Enrolling Method: Power up; Remote ID; QR Code
Electrical Characteristics - Standard Battery Life: Up to 5 years (standby time)
- Power Supply: Battery powered
- Battery Type: CR123A x 1
- Typical Voltage: 3V
General - Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Storage Temperature: -30°C to 60°C (-22°F to 149°F)
- Operating Humidity: 10% to 90%
- Dimensions (W x H x D): Sensor: 40.5 mm × 146 mm × 40.9 mm; Magnetic stick: 30.5 mm × 146 mm × 40.9 mm
- Weight: 247 g
- Application Scenario: Outdoor, IP66
