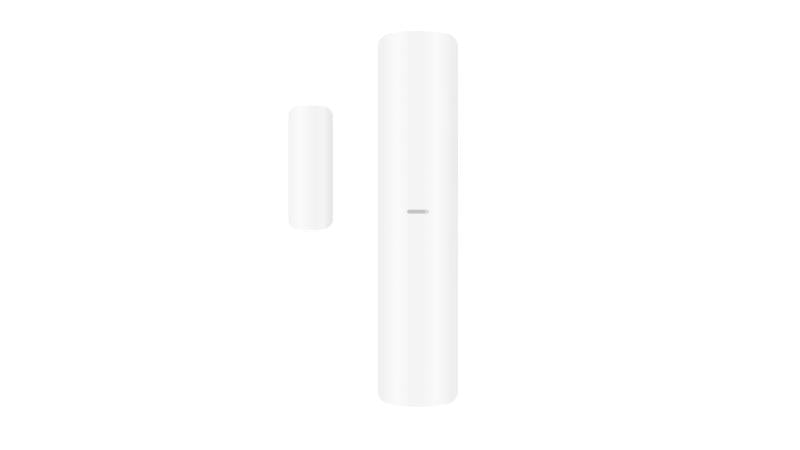

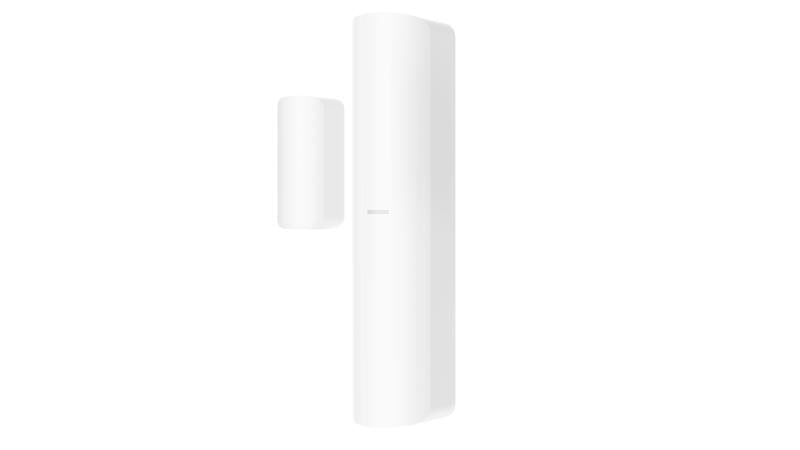

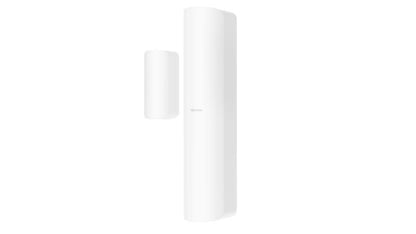

Hikvision Wireless Magnetic Detector DS-PDMCK-EG2-WE AX PRO

Hikvision Wireless Magnetic Detector DS-PDMCK-EG2-WE AX PRO

126 in stock

€40,95
€50,00 €40,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

 Hikvision Wireless Magnetic Detector DS-PDMCK-EG2-WE AX PRO

  • Magnetic contact combined with shock and tilt detection
  • 2 wired inputs extension
  • Fully remote configurable through APP
  • Multiple enrollment methods and easy installation design
  • Frequency hopping against jamming for reliable transmission
Specification Details
Detection Method Opening Contact, Shock Sensor
Detection Gap 43 mm Max
Sensitivity - Shock Detection: High, Normal, Low
- Tilt Detection: Up to 25°
Features - Digital Processing: Support
- Tamper Protection: Front, Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
Interface - Alarm Input: Normally Closed, Normally Open, Impulse Count
- Power Switch: Power up enrolling
- LED Indicator: Green (MC), Orange (tilt), Red (shock), Blue (alarm)
Transmission - Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 868 MHz
- Transmission Security: AES-128 Encryption
- Transmission Range (Free Space): 1.6 km
- Frequency Hopping: Support
- Enrolling Method: Power up, Remote ID, QR Code
Electrical Characteristics - Standard Battery Life: Up to 3 years (standby time)
- Power Supply: Battery powered
- Battery Type: CR123A x 1
- Typical Voltage: 3V
General - Operating Temperature: -10°C to 55°C (14°F to 131°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Operating Humidity: 10% to 90%
- Dimensions (W x H x D): 22.5 mm × 103 mm × 23.2 mm (sensor), 13 mm × 34.4 mm × 11.4 mm (magnet)
- Weight: 60 g
- Application Scenario: Indoor
