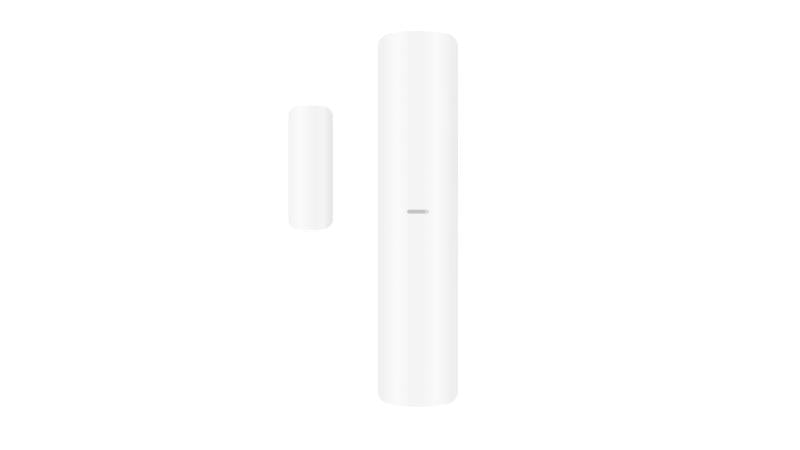

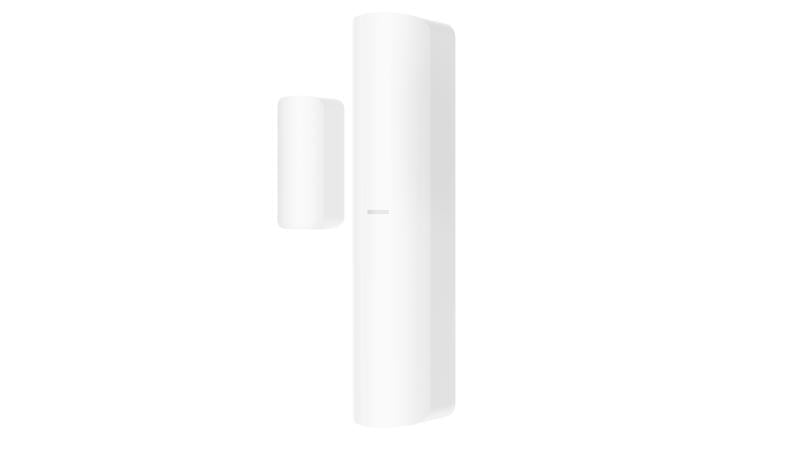

Hikvision Wireless Magnetic Detector DS-PDMC-EG2-WE AX PRO

Hikvision Wireless Magnetic Detector DS-PDMC-EG2-WE AX PRO

35 in stock

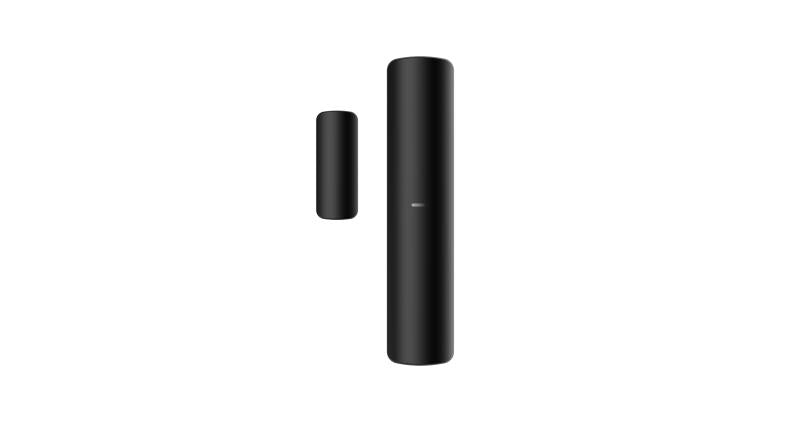

Color: Hikvision Wireless Magnetic Detector DS-PDMC-EG2-WE AX PRO BLACK
€31,95
€40,00 €31,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision Wireless Magnetic Detector DS-PDMC-EG2-WE AX PRO

  • Slim design for unobtrusive installation
  • Fully remote configurable through APP
  • Multiple enrollment methods and easy installation design
  • Frequency hopping against jamming for reliable transmission
Specification Details
Detection Method Opening Contact
Detection Gap 43 mm Max
Features - Digital Processing: Support
- Tamper Protection: Front, Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
Interface - Alarm Input: Normally Closed, Normally Open, Impulse Count
- Power Switch: Power up enrolling
- LED Indicator: Blue (alarm)
Transmission - Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 868 MHz
- Transmission Security: AES-128 Encryption
- Transmission Range (Free Space): 1.6 km
- Frequency Hopping: Support
- Enrolling Method: Power up, Remote ID, QR Code
Electrical Characteristics - Standard Battery Life: Up to 5 years (standby time)
- Power Supply: Battery powered
- Battery Type: CR123A x 1
- Typical Voltage: 3V
General - Operating Temperature: -10°C to 55°C (14°F to 131°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Operating Humidity: 10% to 90%
- Dimensions (W x H x D): 24 mm × 104 mm × 24.4 mm (sensor), 13 mm × 34.4 mm × 11.4 mm (magnet)
- Weight: 59 g
- Application Scenario: Indoor
