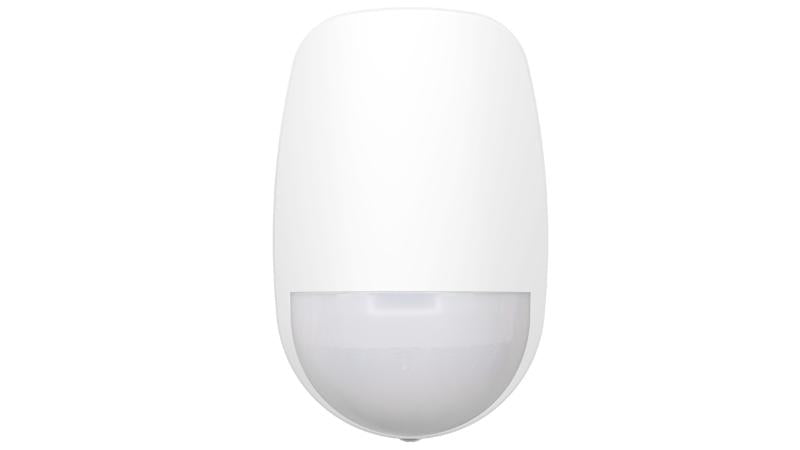

Hikvision Wireless Detector with IR and microwaves DS-PDD12P-EG2-WE AX PRO

Hikvision Wireless Detector with IR and microwaves DS-PDD12P-EG2-WE AX PRO

25 in stock

€64,95
€85,95 €64,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision Wireless Detector with IR and microwaves DS-PDD12P-EG2-WE AX PRO

  • 3D optics including creep-zone protection, ensuring full coverage without dead angles
  • 24G microwave technology to prevent wall penetration
  • Digital temperature compensation for consistent performance across varying temperatures
  • Fully remote configurable through the Hik-Connect App
  • Multiple enrollment methods and easy installation design
  • Easily replaceable battery with PCB protection
  • Frequency hopping against jamming for reliable transmission
Specification Details
Detection Method Passive Infrared and Microwave
Detection Range 12 meters
Detection Angle 85.9°
Detection Zones 52
Detectable Speed 0.3 to 2 m/s
Sensitivity High, Auto, Pet
Pet Immunity Up to 30 kg
White Light Filter 6500 lux
Microwave Frequency 24 GHz (24.15–24.25 GHz)
Digital Temperature Compensation Supported
Creep Zone Protection Supported
Digital Processing Supported
Sealed Optics Supported
Tamper Protection Front and Rear
Environment Temperature Indicator Supported
Signal Strength Indicator Supported
Power Switch Power Up Enrolling
LED Indicator Green (PIR), Red (Microwave), Blue (Alarm)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868 MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) Up to 1.6 km
Frequency Hopping Supported
Enrolling Method Power up, Remote ID, QR Code
Standard Battery Life Up to 5 years (standby time)
Power Supply Battery Powered
Battery Type CR123A × 2
Typical Voltage 3V
Operating Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 10% to 90%
Dimensions (W x H x D) 65.5 mm × 103 mm × 48.5 mm
Weight 141 g
Mounting Height 1.8 m to 2.4 m
Mounting Method Wall-mounted
Application Scenario Indoor
