Hikvision single input transmitter DS-PM1-I1-WE AX PRO

Hikvision single input transmitter DS-PM1-I1-WE AX PRO

Low stock: 9 left

€45,44
€54,98 €45,44
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision single input transmitter DS-PM1-I1-WE AX PRO

  • Small size design, easily fits into wired detectors
  • 868 MHz two-way wireless communication
  • LED display indicating real-time device status
  • Equipped with one tamper input and one PGM, usable as zone input or alarm output
  • Provides 3.3V voltage output to power external wired detectors
  • Detects device removal via accelerometer
Specification Details
Serial Port 1
Power Switch 1
Alarm Input 1 Alarm, 1 Tamper
Alarm Output 1 PGM, AM/Output
3.3V Output 1, up to 10mA

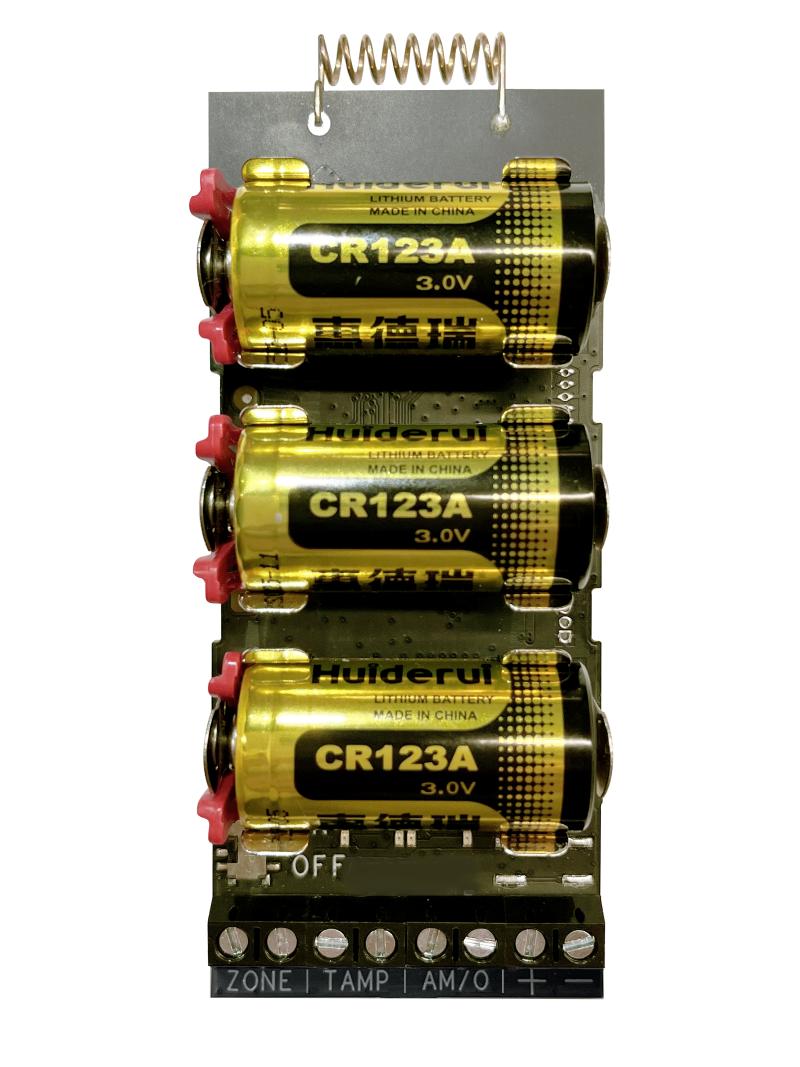

Power Supply 3 × CR123 batteries
Operating Humidity 10% to 90%
Operating Temperature -10°C to 55°C (14°F to 131°F)
Power Consumption Quiescent current: 40.29 µA; Max current: 47.85 mA; Voltage: 3 VDC
Battery Life Span Up to 5 years (standby time)
RF Frequency 868 MHz
RF Method Two-way communication
RF Modulation 2GFSK
RF Distance Up to 1,700 meters (open area)
Indicators 3: Alarm/Tamper (Red), Fault (Amber), Signal Strength (Green/Red)
Installation Method Fits inside wireless-ready detectors
Dimensions (W × H × D) 102 mm × 41 mm × 20 mm
Weight 35 g (without battery), 90 g (with battery)
