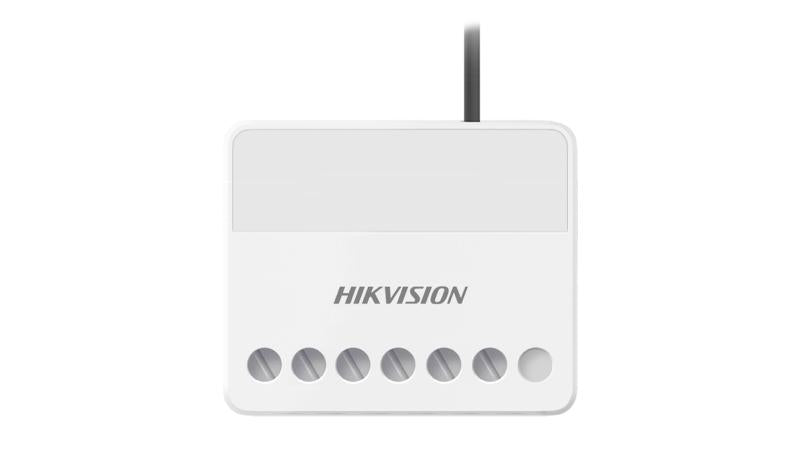

Hikvision Relay Module DS-PM1-O1L-WE AX PRO

Hikvision Relay Module DS-PM1-O1L-WE AX PRO

42 in stock

€39,66
€47,99 €39,66
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision Relay Module DS-PM1-O1L-WE AX PRO

  • 868 MHz two-way wireless communication for stable and secure connections
  • AES-128 encryption ensures data security
  • LED display shows device status and relay on/off status
  • Compact design allows for easy concealment in various installations
  • Supports automation operations with one-button on/off control via APP, Keyfob, or Keypad
  • Scenario settings available based on different events
  • Alarm input available for tamper detection, supporting both NO and NC configurations
Specification Details
Scenario Setting By alarm, by operation, by fault, by schedule, by manual
Learning Button 1, for registration
Serial Port 1, for debugging
Power Supply DC 7V to 24V
Operation Humidity 10% to 90%
Operation Temperature -10°C to 55°C
RF Frequency 868 MHz
RF Method Two-way communication
RF Modulation 2GFSK
RF Distance Up to 1,800 meters (open area)
Wireless Security AES-128 encryption
LED Status Indicators 3 LEDs: register/signal (green/red), power (green), relay status (blue)
Installation Method Wall-mounting
Dimensions (W x H x D) 38 mm × 25 mm × 18 mm
Shell Material Plastic
Color White
Weight 28.5 g
Alarm Input 1 for tamper, NO/NC
Relay Output 1, NO/NC (0 to 36V DC, Max 5A)
