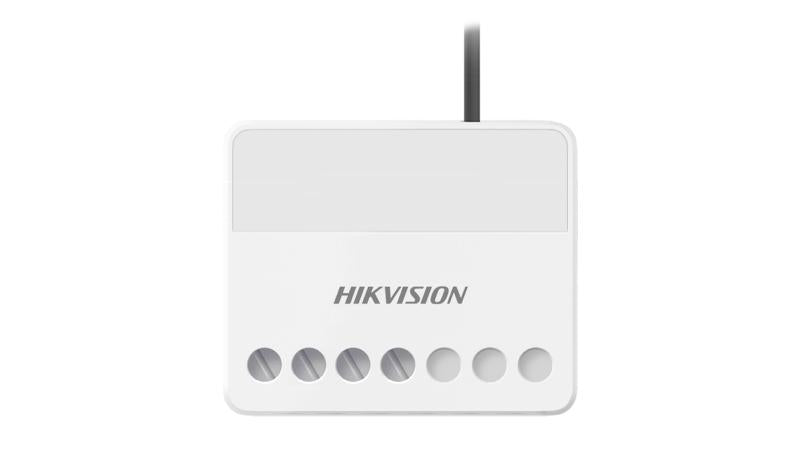

Hikvision Relay Module DS-PM1-O1H-WE AX PRO

Hikvision Relay Module DS-PM1-O1H-WE AX PRO

41 in stock

€39,66
€47,99 €39,66
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision Relay Module DS-PM1-O1H-WE AX PRO

  • 868 MHz two-way wireless communication
  • AES-128 encryption for secure data transmission
  • LED display indicating device status and relay on/off state
  • Compact design suitable for concealed installations
  • Supports automation operations with one-button on/off control via APP, Keyfob, or Keypad
  • Scenario settings available based on different events
Specification Details
Scenario Setting By Alarm, By Operation, By Fault, By Schedule, By Manual
Learning Button 1, for registration
Serial Port 1, for debugging
Power Supply AC 100 V to 240 V, 50/60 Hz
Operation Humidity 10% to 90%
Operation Temperature -10°C to 55°C (14°F to 131°F)
RF Frequency 868 MHz
RF Method Two-way communication
RF Modulation 2GFSK
RF Distance Up to 1,600 meters (open area)
Wireless Security AES-128 encryption
LED Status Indicators 3 LEDs: Register/Signal (Green/Red), Power (Green), Relay Status (Blue)
Installation Method Wall Mounting or Inside 86 box
Dimensions (W x H x D) 38 mm × 25 mm × 18 mm
Shell Material Plastic
Color White
Weight 31.5 g
Relay Output 1, NO/NC (AC 100~240 V, Max 13 A)
