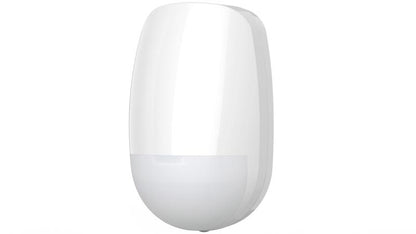

Hikvision PIR Wireless Detector AX PRO DS-PDP15P-EG2-WE

Hikvision PIR Wireless Detector AX PRO DS-PDP15P-EG2-WE

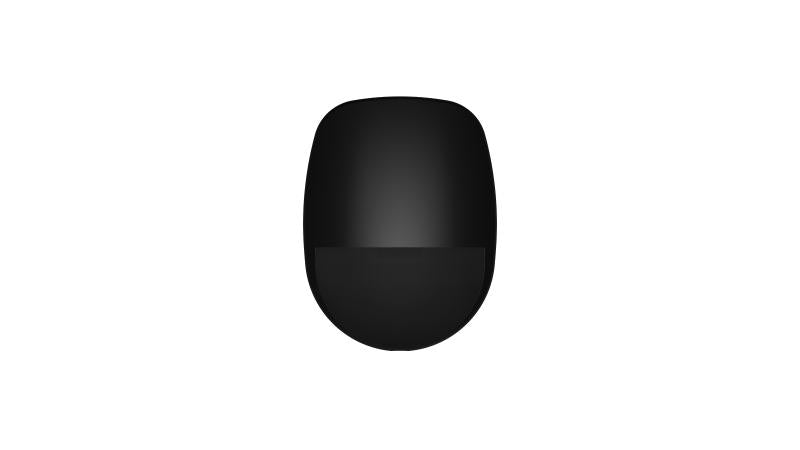

Color: Hikvision PIR Wireless Detector DS-PDP15P-EG2-WE AX PRO BLACK
€37,00
€50,00 €37,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

DSPDP15PEG2WEBLACK

Hikvision PIR Wireless Detector AX PRO DS-PDP15P-EG2-WE

  • 15m detection range with an 85.9° angle
  • Up to 30 kg pet immunity
  • Smart Environmental Control (SEC) with advanced digital signal processing and 3D optics
  • Fully remote configurable through the app
  • Multiple enrollment methods and easy installation design
  • Easily replaceable battery with PCB protection
  • Frequency hopping against jamming for reliable transmission
Specification Details
Detection Method Passive Infrared
Detection Range 15 meters
Detection Angle 85.9°
Detection Zones 52
Detectable Speed 0.3 to 2 m/s
Sensitivity High, Auto, Pet
Pet Immunity Up to 30 kg
White Light Filter 6500 lux
Digital Temperature Compensation Supported
Creep Zone Protection Supported
Digital Processing Supported
Sealed Optics Supported
Tamper Protection Front and Rear
Environment Temperature Indicator Supported
Signal Strength Indicator Supported
Power Switch Power Up Enrolling
LED Indicator Blue (Alarm)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868 MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) Up to 1.6 km
Frequency Hopping Supported
Enrolling Method Power up, Remote ID, QR Code
Standard Battery Life Up to 5 years (standby time)
Power Supply Battery Powered
Battery Type CR123A × 1
Typical Voltage 3V
Operating Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operating Humidity 10% to 90%
Dimensions (W x H x D) 65.5 mm × 103 mm × 48.5 mm
Weight 128 g
Mounting Height 1.8 m to 2.4 m
Mounting Method Wall-mounted
Application Scenario Indoor
Bracket Optional Wall & Ceiling Accessory
