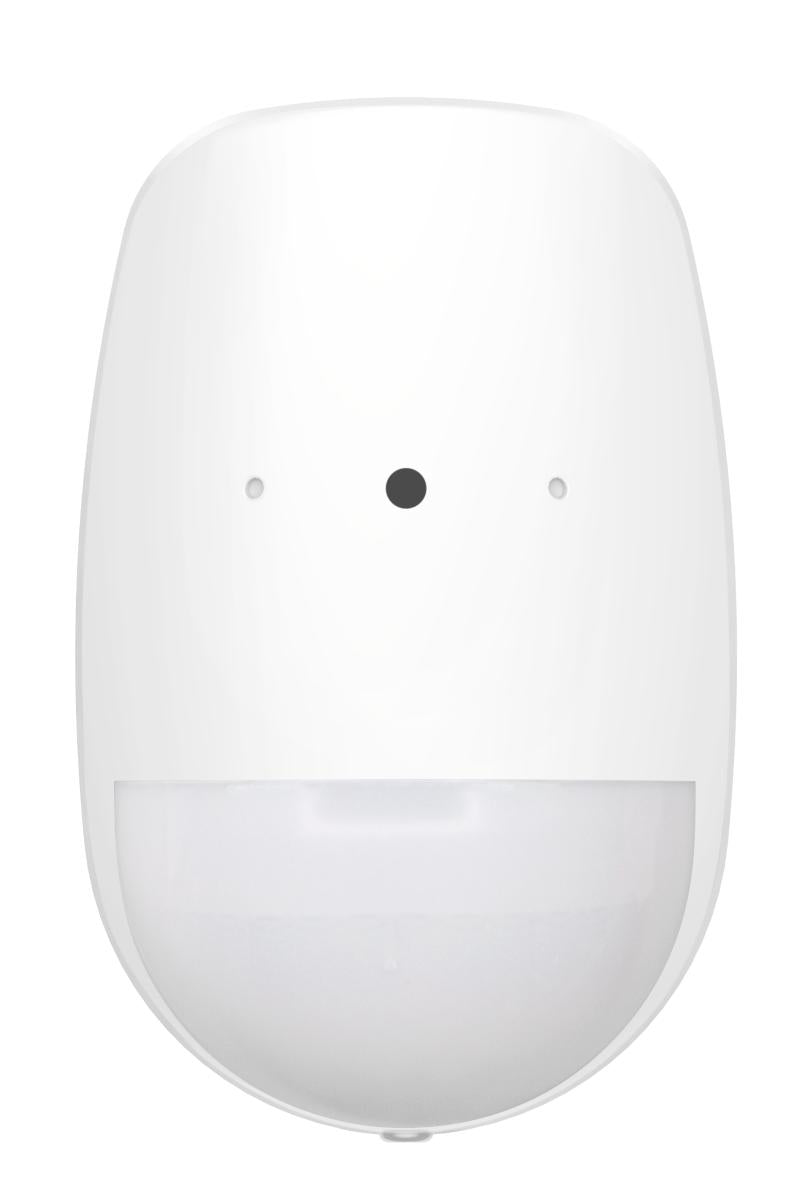

Hikvision PIR-Glass Break Detector DS-PDPG12P-EG2-WE AX PRO

Hikvision PIR-Glass Break Detector DS-PDPG12P-EG2-WE AX PRO

59 in stock

€69,95
€88,64 €69,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision PIR-Glass Break Detector DS-PDPG12P-EG2-WE AX PRO

  • PIR Detection Range: 12m / 85.9°
  • Glass Break Range: 8m / 120°
  • Up to 30kg pet immunity
  • Fully remote configurable through App
  • Multiple enrollment methods and easy installation design
  • Easy replaceable battery with PCB protection
Specification Details
Detection Method Passive Infrared; Acoustic Sensor
Detection Range 12m
Detection Angle 85.9°
Detection Zones 52
Detectable Speed 0.3 to 2m/s
Pet Immunity 30kg
PIR Sensitivity Auto, High, Pet
White Light Filter 6500lux
Glass Break Range 8m
Glass Types Float, Plate, Tempered, Wired, Laminated Leaded, Double Glazing
Glass Break Sensitivity 2m, 4m, 6m, 8m
Glass Thickness 2.4mm to 6.4mm
Glass Size 0.3m × 0.3m to 3m × 3m
Digital Temperature Compensation Support
Creep Zone Protection Support
Digital Processing Support
Sealed Optics Support
Tamper Protection Front, Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Power Switch Power Up Enrolling
LED Indicator Green (PIR), Red (BG), Blue (Alarm)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868 MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) 1.6 km
Frequency Hopping Support
Enrolling Method Power Up, Remote ID, QR Code
Standard Battery Life Up to 4 years (standby time)
Power Supply Battery Powered
Battery Type CR123A × 2
Typical Voltage 3V
Operating Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 10% to 90%
Dimensions (W x H x D) 65.5 mm × 103 mm × 48.5 mm
Weight 130 g
Mounting Height 1.8 m to 2.4 m
Mounting Method Wall
Application Scenario Indoor
