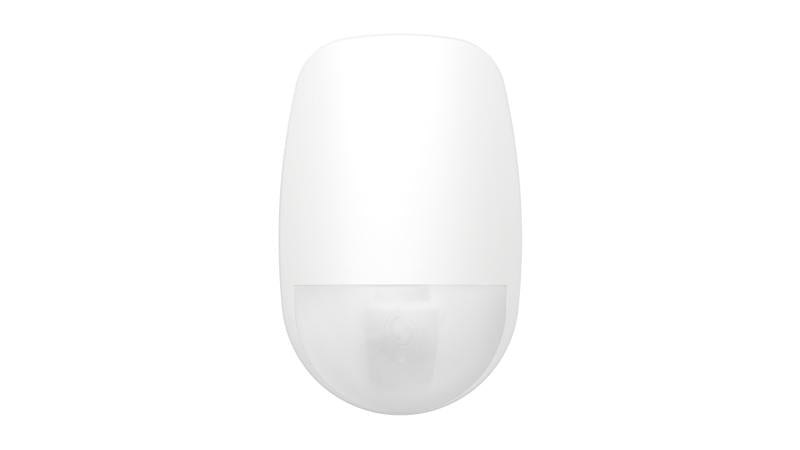

Hikvision PIR Curtain Wireless Detector AX PRO DS-PDC15-EG2-WE(B)

Hikvision PIR Curtain Wireless Detector AX PRO DS-PDC15-EG2-WE(B)

46 in stock

€49,95
€68,46 €49,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision PIR Curtain Wireless Detector AX PRO DS-PDC15-EG2-WE(B)

  • Long-range detection with a narrow angle, ideal for perimeter protection
  • Fully remote configurable through the Hik-Connect App
  • Multiple enrollment methods and easy installation design
  • Easily replaceable battery with PCB protection
  • Frequency hopping against jamming for reliable transmission
Specification Details
Detection Method Passive Infrared
Detection Range 15 meters
Detection Angle 6.3°
Detection Zones 18
Detectable Speed 0.3 to 2 m/s
Pet Immunity None
White Light Filter 6500 lux
Digital Temperature Compensation Supported
Creep Zone Protection Supported
Digital Processing Supported
Sealed Optics Supported
Tamper Protection Front and Rear
Environment Temperature Indicator Supported
Signal Strength Indicator Supported
Power Switch Power Up Enrolling
LED Indicator Blue (Alarm)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868 MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) 1.6 km
Frequency Hopping Supported
Enrolling Method Power up, Remote ID, QR Code
Standard Battery Life Up to 5 years (standby time)
Power Supply Battery Powered
Battery Type CR123A × 1
Typical Voltage 3V
Operating Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operating Humidity 10% to 90%
Dimensions (W x H x D) 65.5 mm × 103 mm × 48.5 mm
Weight 128 g
Mounting Height 2.4 m to 3.6 m
Mounting Method Wall-mounted
Application Scenario Indoor
Bracket Optional Wall & Ceiling Accessory
