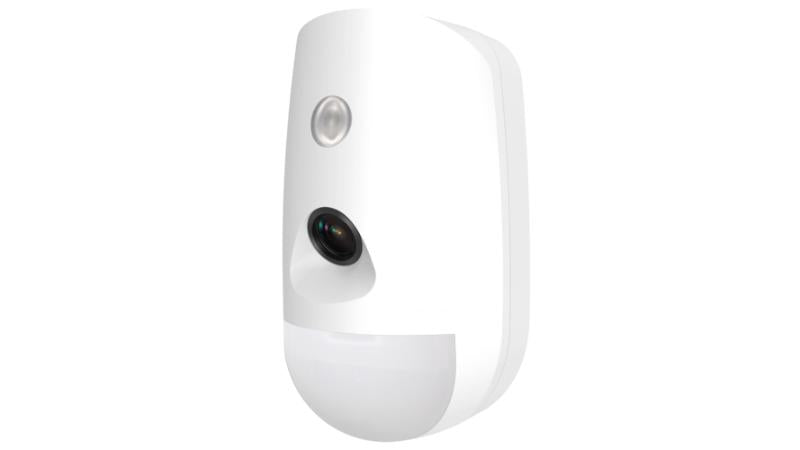

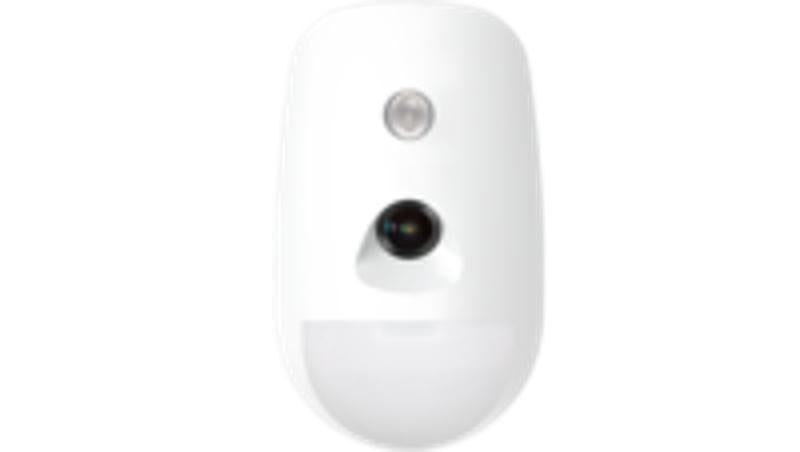

Hikvision PIR-Cam Wireless Detector DS-PDPC12P-EG2-WE(B) AX PRO

Hikvision PIR-Cam Wireless Detector DS-PDPC12P-EG2-WE(B) AX PRO

Low stock: 8 left

€115,95
€129,95 €115,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision PIR-Cam Wireless Detector DS-PDPC12P-EG2-WE(B) AX PRO

  • Detection range: 12m / 85.9°
  • Up to 30KG pet immunity
  • SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
  • Polarizing IR lens design for uniform night illumination and excellent night shots
  • Large integrated memory buffer for image storage
  • Fully remote configurable through App
  • Multiple enrollment methods and easy installation design
  • Easy replaceable battery with PCB protection
Specification Details
Detection Method Passive Infrared; Video Verification
Detection Range 12m
Detection Angle 85.9°
Detection Zones 52
Detectable Speed 0.3～2m/s
Sensitivity High; Auto; Pet
Pet Immunity 30Kg
White Light Filter 6500lux
Digital Temperature Compensation Support
Creep Zone Protection Support
Digital Processing Support
Sealed Optics Support
Tamper Protection Front; Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Field Angle 88.4°(H), 54.0°(V)
Image Type JPEG
Resolution 160×120; 320×240; 640×480
Fill Light Infrared Light
Fill Range 12m
Day/Night Switch Color/Black & White
Power Switch Power Up Enrolling
LED Indicator Blue (Alarm)
Transmission Technology CAM-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) 800m
Enrolling Method Power up; Remote ID; QR Code
Standard Battery Life Up to 6 years (standby time)
Power Supply Battery Powered
Battery Type CR123A × 3
Typical Voltage 3V
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
IP Rate IP65
Dimension (W x H x D) 75.5 mm × 120 mm × 47 mm
Weight 270 g
Mounting Height 1.8 m to 2.4 m
Mounting Method Wall
Application Scenario Indoor
