Hikvision PIR AM Curtain outside Detector PRO DS-PDC10AM-EG2-WE AX PRO

Hikvision PIR AM Curtain outside Detector PRO DS-PDC10AM-EG2-WE AX PRO

Low stock: 1 left

€59,99
€70,00 €59,99
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision PIR AM Curtain outside Detector PRO DS-PDC10AM-EG2-WE AX PRO

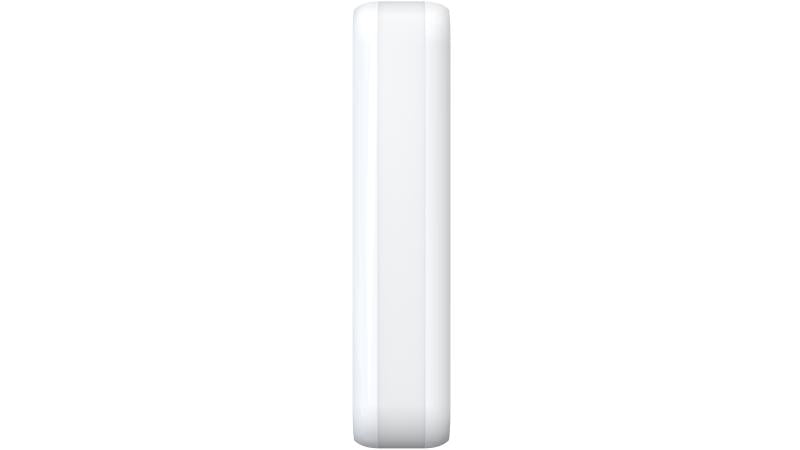

  • Slim design for window frame installation
  • IP65 weather resistance for outdoor application
  • Active IR anti-masking
  • Directional detection support
  • Multiple enrollment methods and easy installation
  • Frequency hopping against jamming for reliable transmission
Specification Details
Detection Method Passive Infrared
Detection Range Wall mount: 10 m
Ceiling mount: 5 m
Detection Angle 5°
Detection Zones 32
Detectable Speed 0.3 to 2 m/s
Sensitivity Auto, Pet
White Light Filter 6500 lux
Pet Immunity Wall mount: 12 kg
Ceiling mount: None
Digital Temperature Compensation Support
Creep Zone Protection Support
Anti-masking Support
Digital Processing Support
Sealed Optics Support
Tamper Protection Front, Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Directional Detection Support
Power Switch Power up enrolling
LED Indicator Blue (alarm), green+orange (mask)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868 MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) 1.6 km
Frequency Hopping Support
Enrolling Method Power up, Remote ID, QR Code
Standard Battery Life Up to 5 years (standby time)
Power Supply Battery powered
Battery Type CR123A × 2
Typical Voltage 3V
Operation Temperature -25°C to 60°C (-13°F to 140°F)
Storage Temperature -25°C to 60°C (-13°F to 140°F)
Operation Humidity 10% to 90%
IP Rate IP65
Dimension (W x H x D) 29.2 mm × 134.4 mm × 39.5 mm
Weight 118.5 g
Mounting Height 2 m to 3.5 m
Mounting Method Wall, Ceiling
