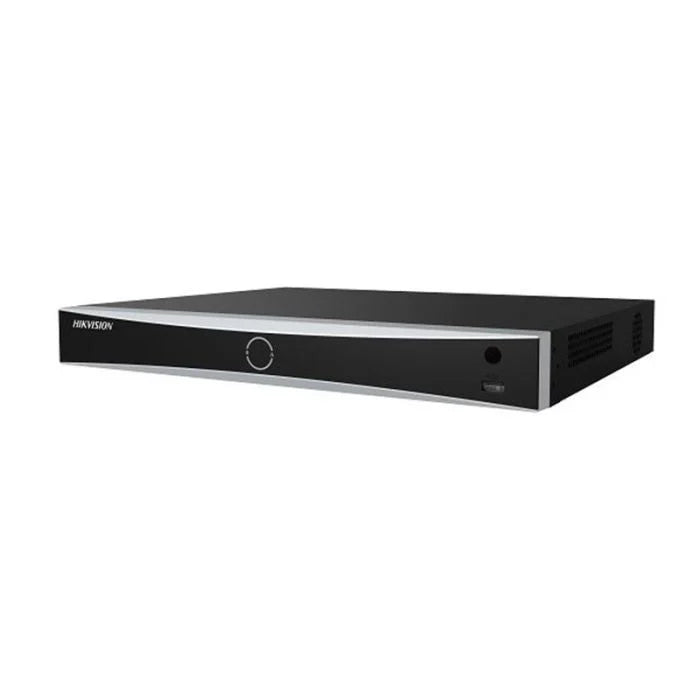

The Hikvision DS‑7616NXI‑I2/16P/S(E) is a professional-grade 16-channel 4K NVR featuring AcuSense AI, offering smart analytics such as facial recognition, motion detection 2.0, and perimeter defense. It supports up to 12 MP recording, and decodes 32 channels of 1080p video. With a built-in 16-port PoE switch (≤200 W), it powers and connects IP cameras directly. High-bandwidth connectivity (160 Mbps in / 256 Mbps out), dual-video outputs (HDMI 4K + VGA 1080p), and dual SATA bays (10 TB each) ensure comprehensive recording capacity and monitoring flexibility. Additional features include smart search, POS integration, two-way audio, and robust housing ideal for enterprise surveillance deployments.
Key Features
Channels: 16 PoE IP camera inputs
Resolution Support: Up to 12 MP recording; decoding up to 32 × 1080p
AI & Analytics: AcuSense NVR AI—facial recognition (4 live, 8 image libraries), motion detection 2.0, and up to 4-channel perimeter protection
Bandwidth: 160 Mbps incoming, 256 Mbps outgoing
Video Outputs: Independent HDMI (4K/30 Hz) and VGA (1080p/60 Hz); plus CVBS BNC
Audio Support: 1-channel RCA output; 1-channel two-way audio
Compression: H.265+/H.265/H.264+/H.264
Recording Storage: 2 SATA bays, up to 10 TB each
Playback & Interface: 16-channel synchronous playback; USB 2.0 front, USB 3.0 rear
Network: 1× Gigabit LAN; 16× PoE (≤200 W total)
Power Supply: 100–240 VAC; ≤30 W (excluding HDD and PoE)
Operating Conditions: –10 °C to 55 °C; 10–90% humidity
Form Factor: 1U chassis (385 × 317 × 52 mm), ≤2.5 kg (without HDD)
Certifications: CE, CB, UKCA, REACH/WEEE, EN 50130‑4, EN 61000 series
Use Case: Ideal for AI-enhanced video surveillance with integrated PoE in enterprise and professional settings
