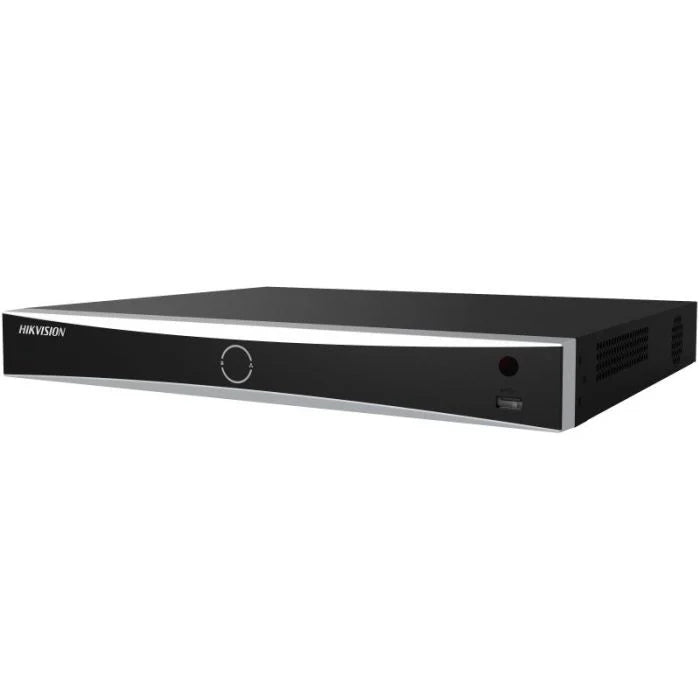

The Hikvision DS‑7608NXI‑K2(D) is a professional-grade 8-channel 4K AcuSense NVR delivering powerful AI-powered video surveillance. Featuring facial recognition, Motion Detection 2.0, and Perimeter Protection, it intelligently filters out false alarms and accurately identifies people and vehicles. It supports up to 12 MP recording, with flexible decoding options depending on workload. Dual independent video outputs (HDMI 4K + VGA 1080p) aid diverse display setups, while dual SATA bays allow up to 20 TB of storage. With efficient H.265+ compression, onboard audio, and alarm I/O, it’s ideal for enterprise and professional security deployments. Ruggedly built and easy to integrate with Hikvision IP cameras, it ensures reliable performance in demanding environments.
Key Features
Channels: 8 IP camera inputs
Resolution Support: Up to 12 MP recording
Decoding Capability: AI on: 2‑ch @12 MP, 4‑ch @8 MP, 8‑ch @4 MP, 16‑ch @1080p; AI off: 8‑ch @4 MP or 16‑ch @1080p
AcuSense AI: Facial recognition (1 ch live, 4 ch face libraries), Motion Detection 2.0, Perimeter Protection
Bandwidth: 80 Mbps incoming / 160 Mbps outgoing
Video Outputs: 1× HDMI (up to 4K30), 1× VGA (1080p); independent outputs
Audio: 1× RCA output; 1-channel two-way audio
Compression: Supports H.265+, H.265, H.264+, H.264
Storage: 2× SATA ports (up to 10 TB each)
USB Ports: 1× front USB 2.0, 1× rear USB 2.0
Alarm I/O: 4 inputs, 1 output
Network: 1× RJ-45 Gigabit LAN; 128 remote connections
Power: 12 V DC; ≤ 15 W (without HDD)
Operating Conditions: –10 °C to 55 °C; 10–90 % RH
Form Factor: 1U chassis, 385 × 315 × 52 mm; ≤ 1 kg (no HDD)
