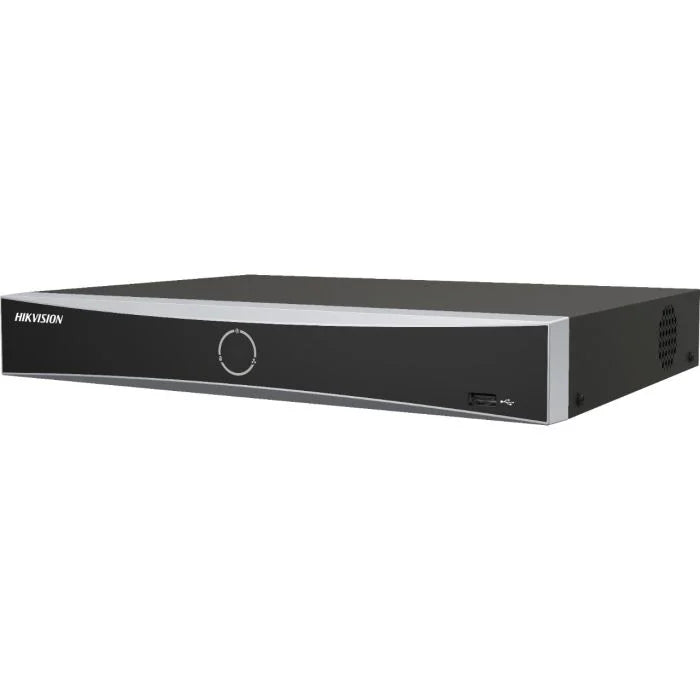

The Hikvision DS‑7608NXI‑K1/8P(D) is a powerful and compact 8-channel 4K PoE NVR equipped with AcuSense AI, enabling advanced features like facial recognition, perimeter detection, object-throwing alerts, and human/vehicle classification. It offers flexible decoding capabilities—supporting up to 12MP streaming—and dual independent outputs (4K HDMI + 1080p VGA). With efficient H.265+ compression, a single large drive bay (up to 16 TB), and 8-port PoE, it’s ideal for turn-key small-to-mid scale deployments. Supporting up to 128 remote connections and featuring industry-standard certifications, it provides secure and reliable surveillance.
Key Features
Channels: 8 PoE IP camera inputs
Resolution Support: Up to 12 MP recording
Decoding Performance: With AI on – 2 ch@12 MP, 3 ch@8 MP, 6 ch@4 MP, 12 ch@1080p. AI off – 2 ch@12 MP, 4 ch@8 MP, 8 ch@4 MP, 16 ch@1080p
AcuSense AI: Includes facial recognition (1 ch live stream, libraries up to 16, 20,000 faces), Motion Detection 2.0, Perimeter Protection, and “throwing object” detection
Bandwidth: 80 Mbps incoming, 80 Mbps outgoing
Video Outputs: 1× HDMI up to 4K30, 1× VGA up to 1080p; independent HDMI/VGA outputs
Audio: 1× RCA output; 1‑ch two‑way audio via RCA
Compression: H.265+, H.265, H.264+, H.264
PoE Ports: 8× IEEE802.3af/at, max 75 W
Storage: 1× SATA drive bay, up to 16 TB (some units support 10 TB)
Alarm I/O: 4 inputs / 1 output (optional on some SKU versions)
USB: 1× front USB 2.0, 1× rear USB 2.0
Remote Access: Up to 128 simultaneous connections; supports ONVIF, Hik-Connect, and web interfaces
Security: 48 VDC power supply; ≤10 W without HDD or PoE load
Build: 1U chassis at 320 × 240 × 48 mm; weight ≤1 kg without HDD
Operating Range: –10 °C to 55 °C; humidity 10–90% RH
Certifications: CE, FCC, IC, CB, KC, UL, UKCA, EN 55032, EN 61000‑3‑2/‑3/‑4/‑5
