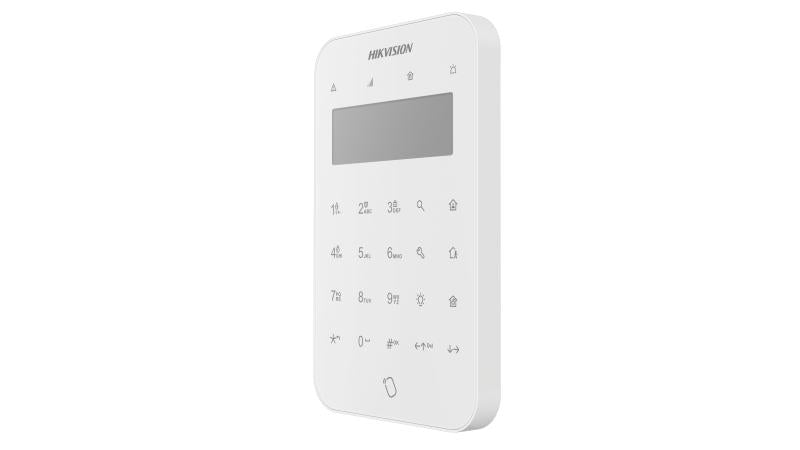

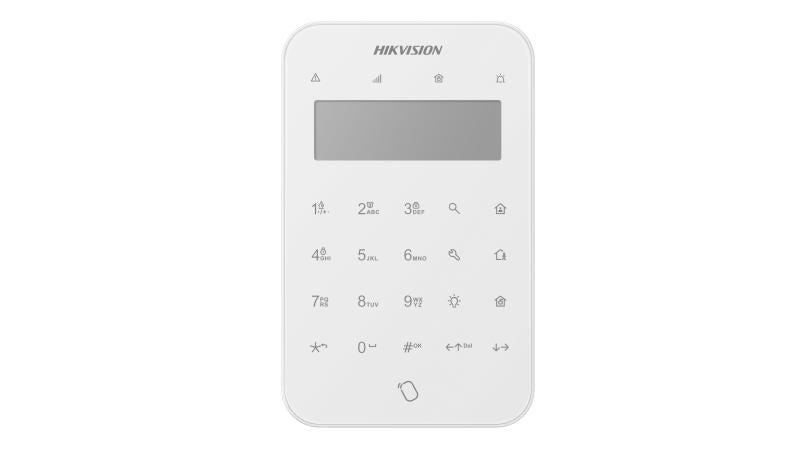

Hikvision KeyPad DS-PK1-LT-WE AX PRO

Hikvision KeyPad DS-PK1-LT-WE AX PRO

27 in stock

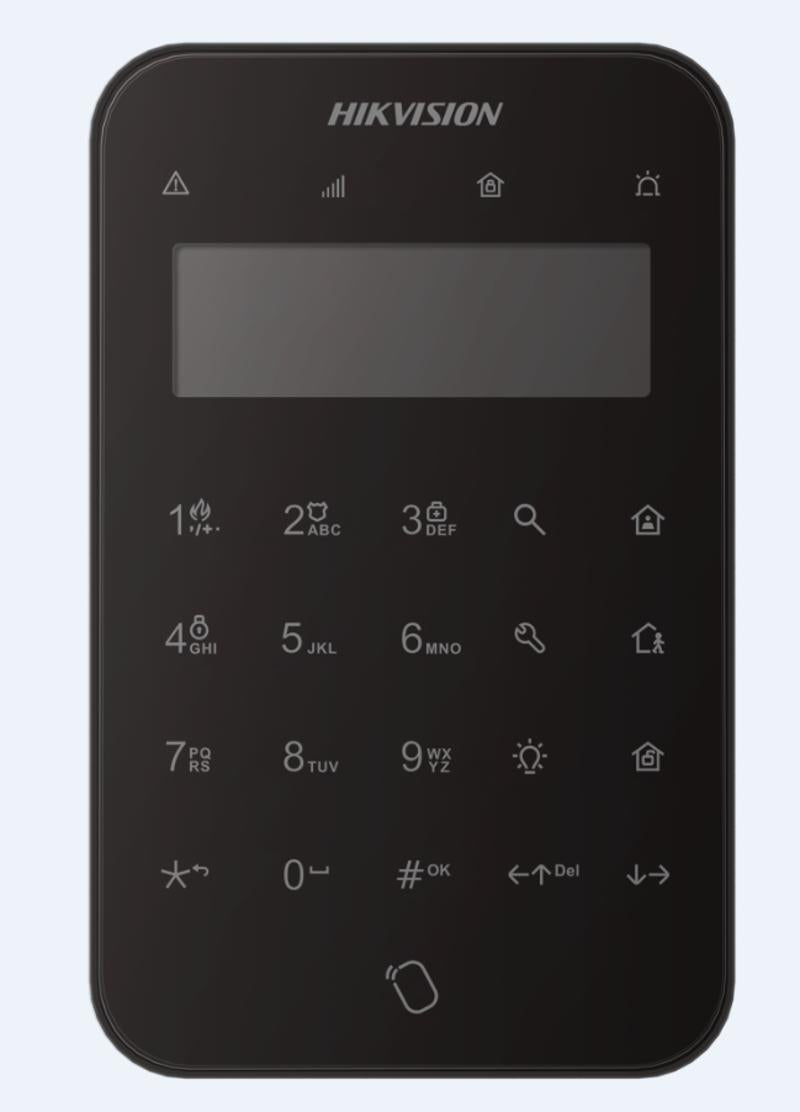

Color: Hikvision KeyPad DS-PK1-LT-WE AX PRO BLACK
€119,95
€129,95 €119,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision KeyPad DS-PK1-LT-WE AX PRO

  • 868 MHz two-way wireless communication
  • LCD screen and LED indicators for system status
  • System configuration through LCD screen
  • Multiple operations: stay/away arm, disarm, silent alarm, output control
  • One-push fire alarm, panic alarm, and medical alarm
  • Full touch key design with LED backlight
  • Fully remote configurable through App
  • Built-in tag reader
  • Tamper-proof (front and rear)
  • Buzzer supported
  • Power on/off switch
Specification Details
Battery Type Four CR123 batteries
Battery Life Span Up to 2 years (standby time)
Operating Temperature -10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity 10% to 90% (non-condensing)
Power Consumption Quiescent current: 80 µA; Max current: 300 mA; Voltage: 3V
RF Frequency 868 MHz
RF Modulation 2GFSK
RF Transmission Distance Up to 1,200 meters (open area)
Wireless Technology Tri-X Wireless Technology
Numeric Keys Number keys: 0-9; Function keys: *, #, Query, Away arm, Stay arm, Disarm, Output, Project, Right, Left
LED Indicators Fault (orange), Enrollment/Signal (red/green), Arm (blue), Disarm (green), Alarm (red)
Installation Method Wall-mounting
Dimensions (W x H x D) 174.63 mm × 109.62 mm × 25.25 mm
Weight With batteries: 348 g; Without batteries: 282 g
Color White
