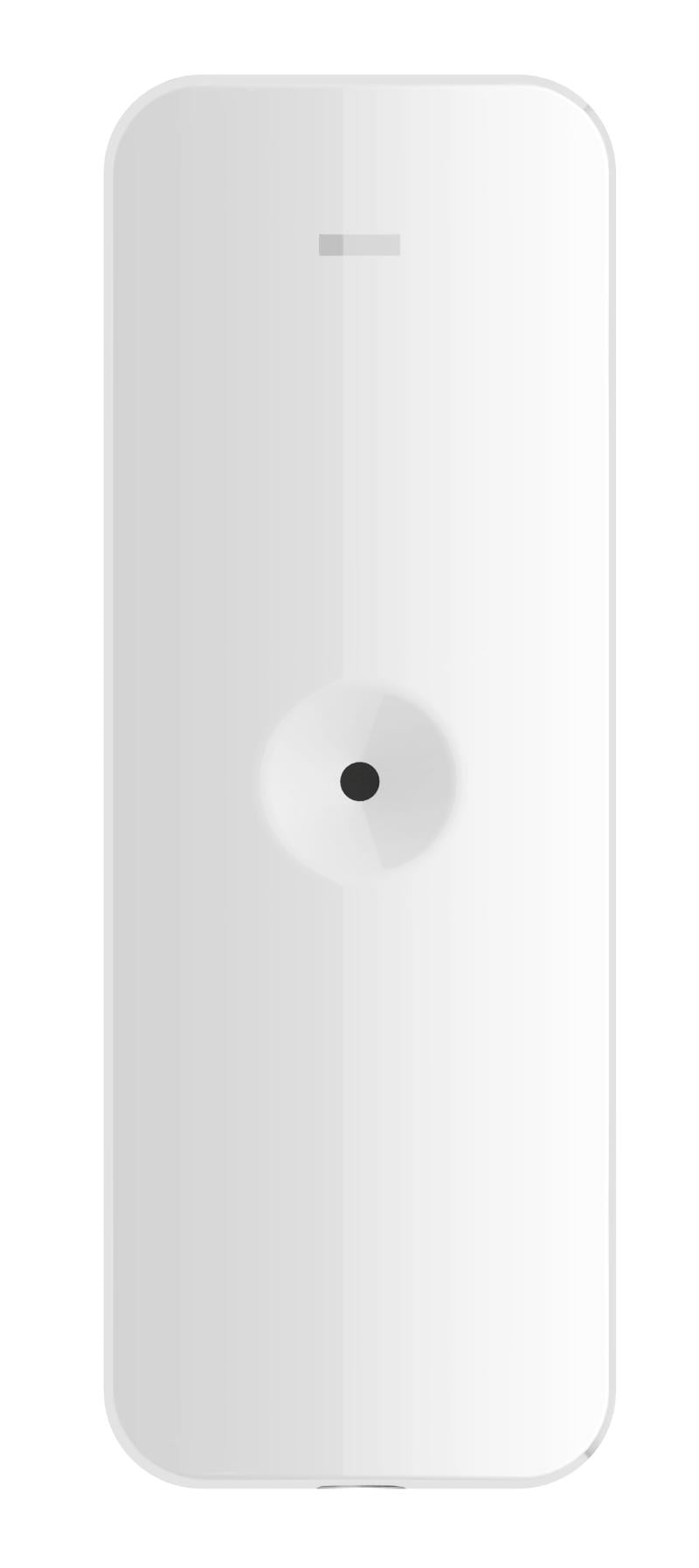

Hikvision Glass Break Detector DS-PDBG8-EG2-WE AX PRO

Hikvision Glass Break Detector DS-PDBG8-EG2-WE AX PRO

27 in stock

€51,06
€61,78 €51,06
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision Glass Break Detector DS-PDBG8-EG2-WE AX PRO

  • High-quality omni-directional microphone sensor
  • Up to 8m/120° detection coverage
  • Digital processing technology
  • Front and rear tamper protection
  • Environment temperature indicator
  • Signal strength indicator
  • Supports various glass types: float, plate, tempered, wired, laminated, leaded, double glazing
Specification Details
Detection Method Acoustic Sensor
Detection Range 8 m
Detection Angle 120°
Sensitivity 2 m, 4 m, 6 m, 8 m
Glass Thickness 2.4 mm to 6.4 mm
Glass Size 0.3 m × 0.3 m to 3 m × 3 m
Alarm Input Normally Closed, Normally Open, Impulse Count
Power Supply Battery powered
Battery Type CR123A × 2
Typical Voltage 3V
Standard Battery Life Up to 5 years (standby time)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868 MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) 1.6 km
Frequency Hopping Supported
Enrolling Method Power up, Remote ID, QR Code
Operating Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 10% to 90%
Dimensions (W x H x D) 38.8 mm × 107.0 mm × 24.5 mm
Weight 83 g
Mounting Method Wall, Ceiling
Application Scenario Indoor
