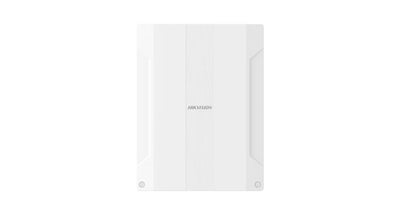

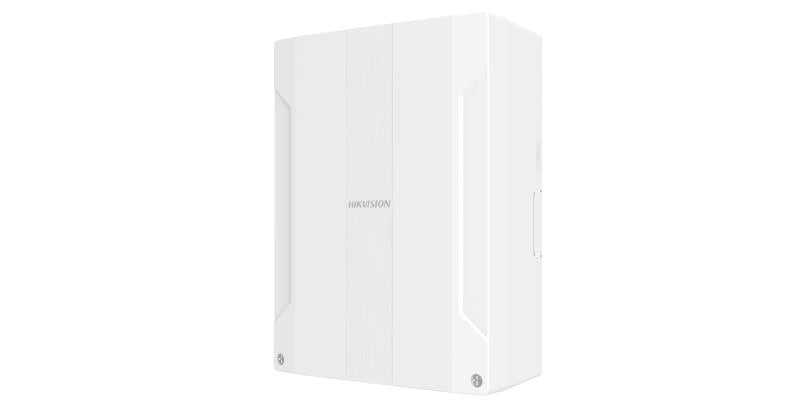

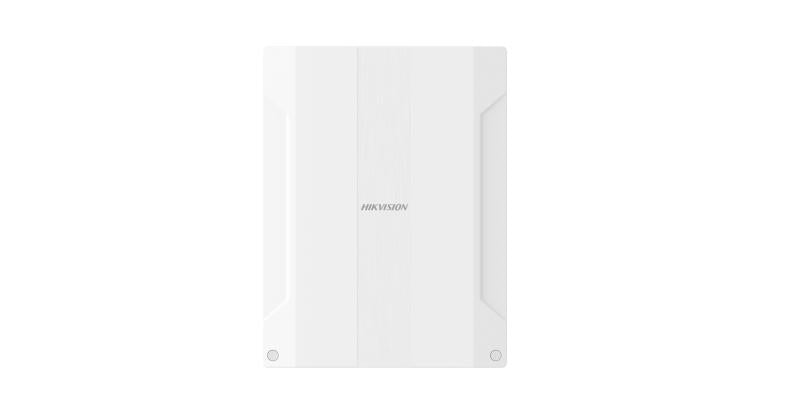

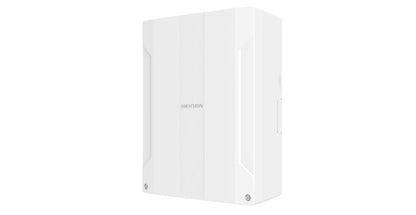

Hikvision Control Panel AX PRO DS-PWA96-M2H-WE

Hikvision Control Panel AX PRO DS-PWA96-M2H-WE

16 in stock

€199,00
€400,00 €199,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision Control Panel AX PRO DS-PWA96-M2H-WE

  • Supports TCP/IP, Wi-Fi, and 3/4G networks
  • Utilizes new generation wireless protocols: Tri-X/Cam-X
  • Long RF transmission distance with two-way communication and AES-128 encryption
  • Connects up to 96 zones/outputs (including 48 PIRCAMs & 16 onboard wired zones & 2 onboard wired outputs), 48 wireless keyfobs, 4 repeaters, 6 sounders (3 internal + 3 external), 8 tag readers & keypads
  • Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
  • Voice prompt feature
  • Configuration via Web client, mobile client, and Convergence Cloud
  • Pushes alarm notifications via messages or phone calls
  • Allows viewing of live videos from Hik-Connect
  • Alarm video clips available via emails and APP
  • Supports LED indicator to indicate system status
  • Complies with SIA-DC09 protocol and supports both Contact ID and SIA data formats
  • Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
Specification Details
Tag Capacity 48
Areas 32
Zones Up to 96 (including 48 PIRCAMs & 16 onboard wired zones & 2 onboard wired outputs)
Onboard Video Clips 4
Installer Accounts 1
User Accounts 46
Administrator Accounts 1
Voice Prompt Supported
Loudspeaker Built-in Supported
Tag Reader Built-in No
Memory Log Stored 5000
Programming Tools Hik-Connect/Hik-ProConnect/Web Portal/IVMS4200/Convergence Cloud
Firmware Upgrade APP/Web Portal
Arm Modes Away/Stay
Automatic Arm/Disarm Timers Supported
Forced Arming with Open Zones Supported
Diagnostics via APP or Web Supported
ARC Protocol SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
User APP for Operating Supported
Installer APP for Programming Supported
Web Server for Maintenance (Offline Configuration) Supported
Power Output 2 onboard (12V, total 1A)
RS232 Output Supported
SIM Slot Dual
Two-way Wireless Communication Supported
RF Frequency 868 MHz
Wireless Security Frequency Hopping 128 AES Encryption
Wireless Communication Range (Free Space) 1.6 km
Battery Type Built-in on-board Li battery
Backup Battery Capacity 4520mAh
Backup Battery Lifespan Up to 12 hours at normal temperature (battery working time may vary based on usage and environment)
Power Supply Built-in power supply
Operating Temperature -10°C to +55°C (The battery cannot be charged at temperatures lower than 10°C; please ensure the adapter is connected)
Storage Temperature -20°C to +60°C (-4°F to 140°F)
Operating Humidity 10% to 90% (Non-condensing)
Dimensions (W x H x D) 190 mm × 190 mm × 40 mm
Weight 840 g
Mounting Method Wall-mounted
Application Scenario Indoor
