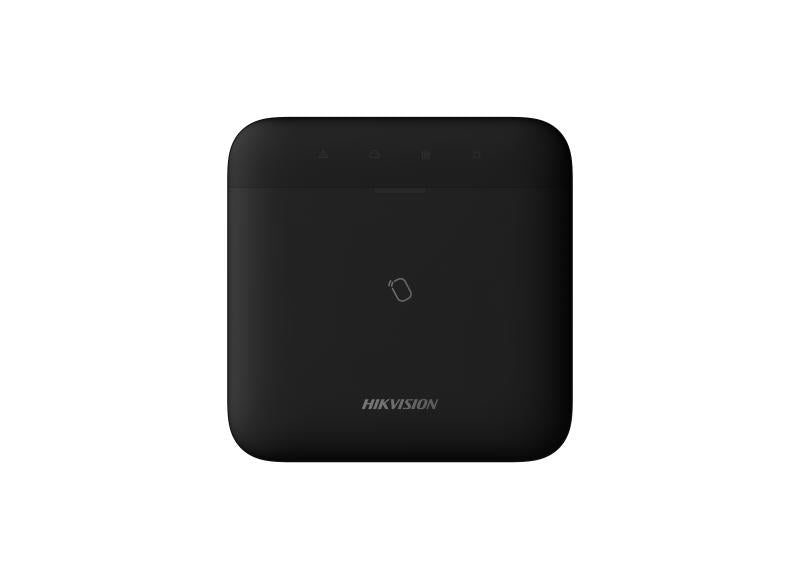

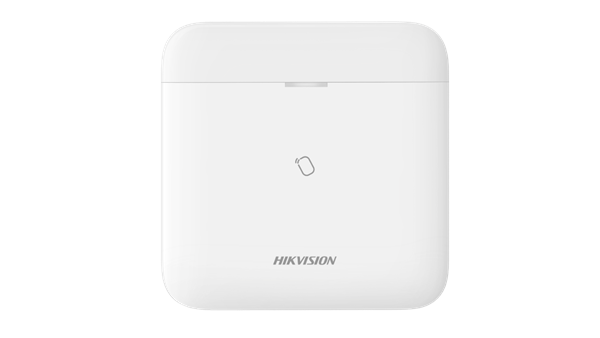

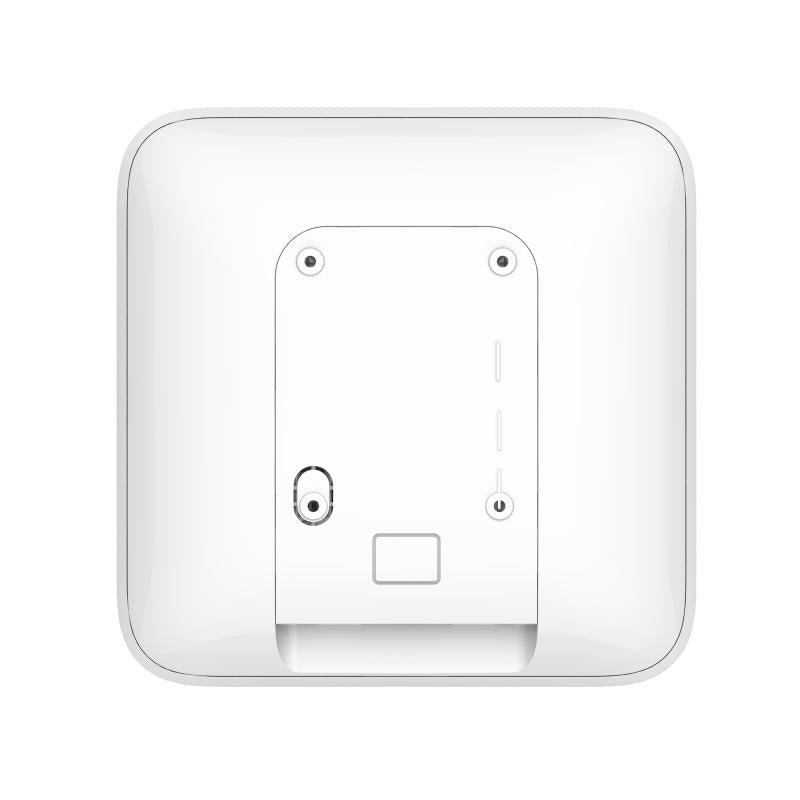

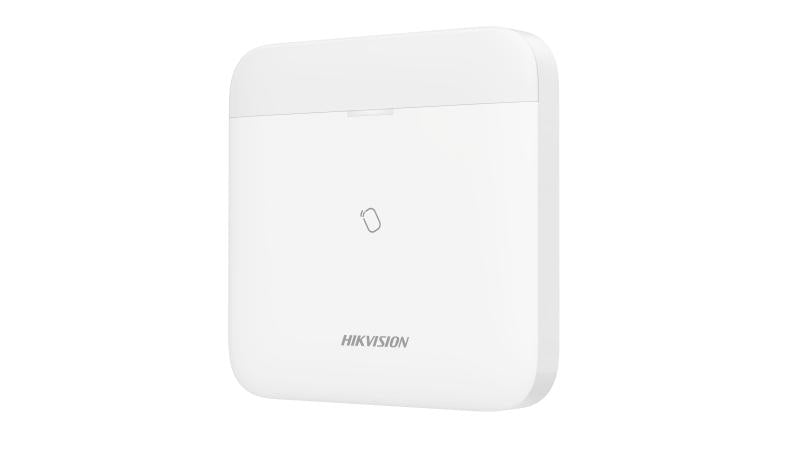

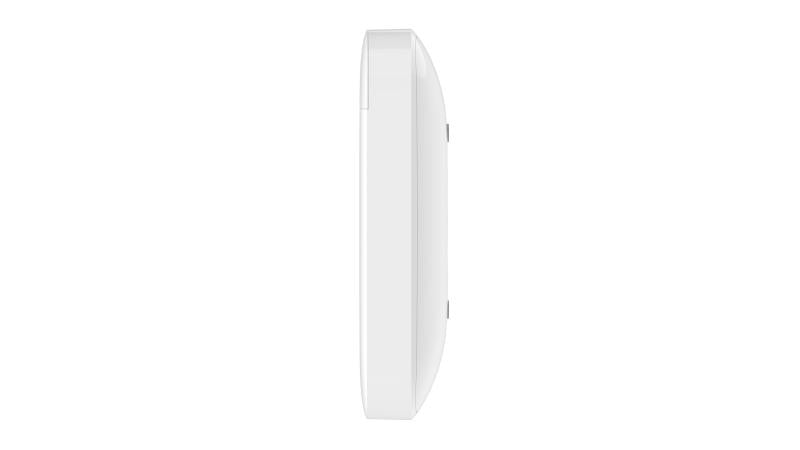

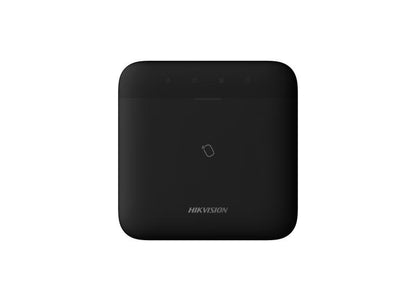

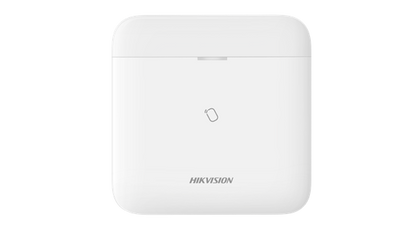

Hikvision Control Panel AX PRO DS-PWA96-M-WE

Hikvision Control Panel AX PRO DS-PWA96-M-WE

29 in stock

Color: Hikvision Control Panel DS-PWA96-M-WE AX PRO BLACK
€223,14
€244,00 €223,14
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hikvision Control Panel AX PRO DS-PWA96-M-WE

  • Supports TCP/IP, Wi-Fi, and 3/4G networks
  • Utilizes new generation wireless protocols: Tri-X/Cam-X
  • Long RF transmission distance
  • Two-way communication with AES-128 encryption
  • Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders (3 internal + 3 external), and 8 tag readers and keypads
  • Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
  • Voice prompt feature
  • Configuration via Web client, mobile client, and Convergence Cloud
  • Pushes alarm notifications via messages or phone calls
  • Allows viewing of live videos from Hik-Connect
  • Alarm video clips available via emails and APP
  • Supports LED indicator to indicate system status
  • Equipped with a 4520 mAh lithium backup battery
  • Complies with SIA-DC09 protocol and supports both Contact ID and SIA data formats
  • Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
Specification Details
Diagnostics via the APP or Web Supported
Installer 1
Installer APP for programming Supported
Onboard video clips 4
Web server for maintenance (offline configuration) Supported
Wi-Fi standard Supported
Arm modes Away/Stay
Firmware upgrade APP/Web Portal
Admin 1
Wired network Supported
Programming tools Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
Forced arming with open zones Supported
Memory log stored 5000
User 46
User APP for operating Supported
Voice prompt Supported
Area 32
Automatic arm/disarm timers Supported
RS232 output Supported
SIM slot Dual
3/4G on board Supported
Tag reader built in Supported
Loudspeaker built in Supported
Battery type Built-in on-board Li Battery
Power supply Built-in power supply
Operation temperature -10 °C to +55 °C (The battery cannot be charged at temperatures lower than 10°C; please ensure the adapter is connected)
Battery lifespan Up to 12 hours at normal temperature (Battery working time may vary based on usage and environment)
Backup Battery Capacity 4520mAh
Backup Battery Type Rechargeable Lithium Battery
Dimensions (W x H x D) 190mm × 190mm × 40mm
Weight 840g
Mounting Method Wall-mounted
Application Scenario Indoor
