Hikvision AX PRO Alarm Kit DS-PWA96-Kit-WE

Hikvision AX PRO Alarm Kit DS-PWA96-Kit-WE

51 in stock

€299,95
€399,95 €299,95
Sale Sold out
Taxes included. Shipping calculated at checkout.

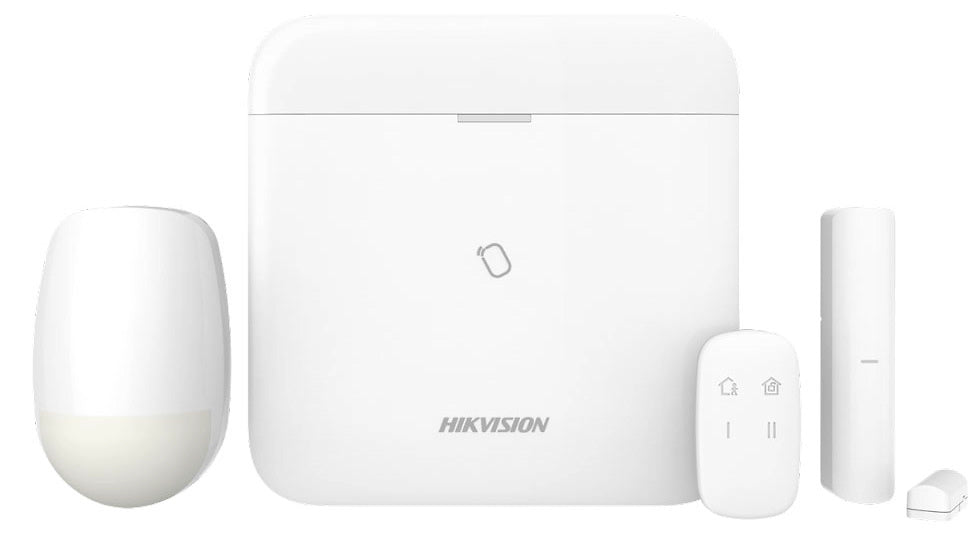

Hikvision AX PRO Alarm Kit DS-PWA96-Kit-WE

  • Includes DS-PWA96-M-WE control panel
  • Comes with DS-PKF1-WE keyfob
  • Equipped with DS-PDP15P-EG2-WE wireless PIR detector
  • Includes DS-PDMC-EG2-WE wireless magnetic contact
Specification Details
Control Panel Model DS-PWA96-M-WE
Keyfob Model DS-PKF1-WE
Wireless PIR Detector Model DS-PDP15P-EG2-WE
Wireless Magnetic Contact Model DS-PDMC-EG2-WE
Wireless Zones Up to 96 (including 48 PIRCAMs)
Areas 32
Tags 48
Keyfobs Up to 48
Wireless Sounders Up to 6 (3 internal + 3 external)
Keypads Up to 8 (including tag readers)
Wireless Repeaters Up to 4
Multi Transmitters Up to 6
PIR Cameras Supported
Communication Methods TCP/IP, Wi-Fi, and 3/4G network
Wireless Protocols Tri-X/Cam-X
RF Transmission Distance Long-distance with two-way communication and AES-128 encryption
Network Users Supports up to 48 users (1 installer, 1 administrator, and 46 normal users)
Voice Prompt Supported
Configuration Methods Web client, mobile client, and Convergence Cloud
Alarm Notifications Push notifications via messages or phone calls
Live Video Viewing Supported via Hik-Connect
Alarm Video Clips Available via emails and app
System Status Indicator LED indicator supported
Backup Battery 4520 mAh lithium battery
Protocol Support SIA-DC09, supports both Contact ID and SIA data formats
ARC Communication Supports Hik-IP Receiver and Hik-IP Receiver Pro
RS232 Output Supported
SIM Slots Dual
3/4G Onboard Supported
Tag Reader Built-in Supported
Loudspeaker Built-in Supported
Battery Type Built-in on-board Li battery
Power Supply Built-in power supply
Operating Temperature -10 °C to +55 °C (Note: The battery cannot be charged at temperatures lower than 10°C; please ensure the adapter is connected)
Battery Lifespan Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
Dimensions (W x H x D) 170.0 mm × 170.0 mm × 38.6 mm
Weight 700 g
Mounting Method Wall-mounted
Application Scenario Indoor
