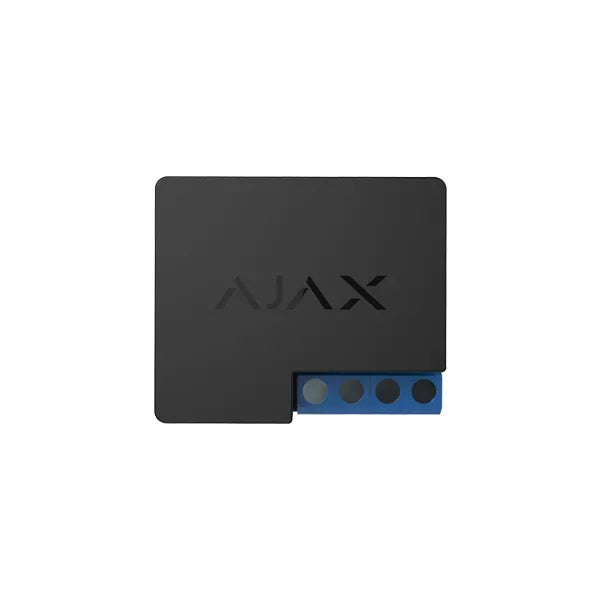

Ajax Relay

Ajax Relay is a universal low-voltage dry contact relay that allows you to remotely control third-party devices such as gates, garage doors, electric locks or boilers. It operates from 12–24 V DC, consumes little power and can switch loads up to 3 A.

• Dry contact output can switch loads at 12–24 V DC up to 3 A
• Remotely controlled via Ajax app or automation scenarios
• Supports bistable or pulse modes for momentary activation
• Low power consumption of the module itself (less than 1 W)
• Over-temperature and over-voltage protection
• Configurable reaction to arming/disarming or sensor events
• Compact dimensions allow installation inside a junction box
• Easy connection to 12–24 V DC power with backup battery support

Required to use: Ajax hub; 12–24 V power supply
